Quamvis320®

Advanced Design Easy to Handle

Quamvis Hyperbaric Chamber

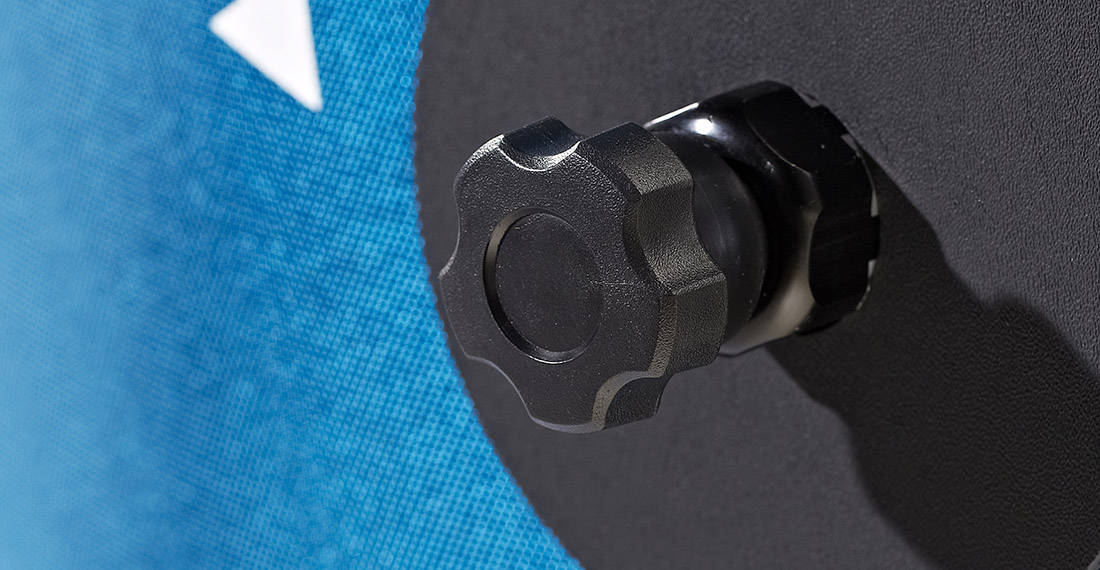

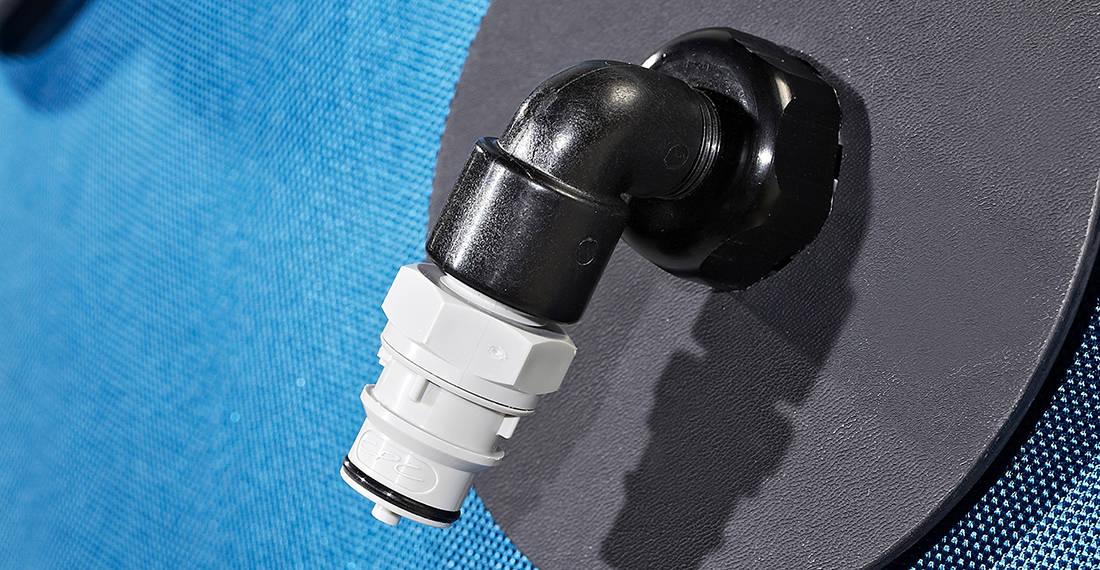

Our latest unique design is a soft-walled hyperbaric chamber with a roomy 32” internal diameter to provide easy entry and exit to the patients. Quamvis320® is OxyHealth’s™ most secure and portable chamber that can easily fit in two adults for treatment. The dual pressure control valves fitted in the chamber allows the patient to self-treat and the air circulation consistency is maintained by the air-in ports and tamper-proof redundant pressure regulators, placed at strategic points. The chamber comes with a performance boosting ballistic nylon jacket and an external buckling system called the “SafeSet” to provide additional safety over the standard safety specifications of the industry. The practical yet cutting-edge design of this hyperbaric chamber comes with state-of-the-art medical technology and is a perfect fit for both home and clinical use.

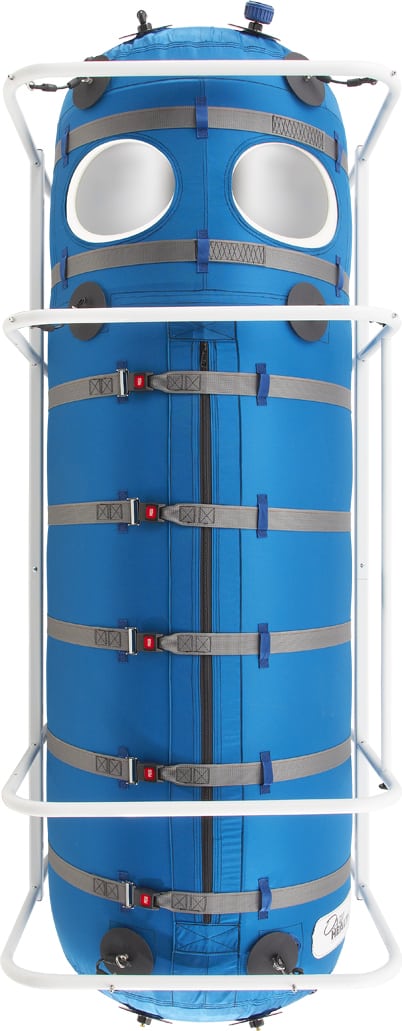

Quamvis Hyperbaric Chamber Top View

Quamvis320® Hyperbaric Chamber

1.3 ATA (4 psi) operating pressure

Durable, double-sided 44 oz. urethane coated polyester bladder

Pressure tested beyond 30 psi to exceed PVHO-1 safety requirements

Extreme performance reinforcing ballistic nylon jacket

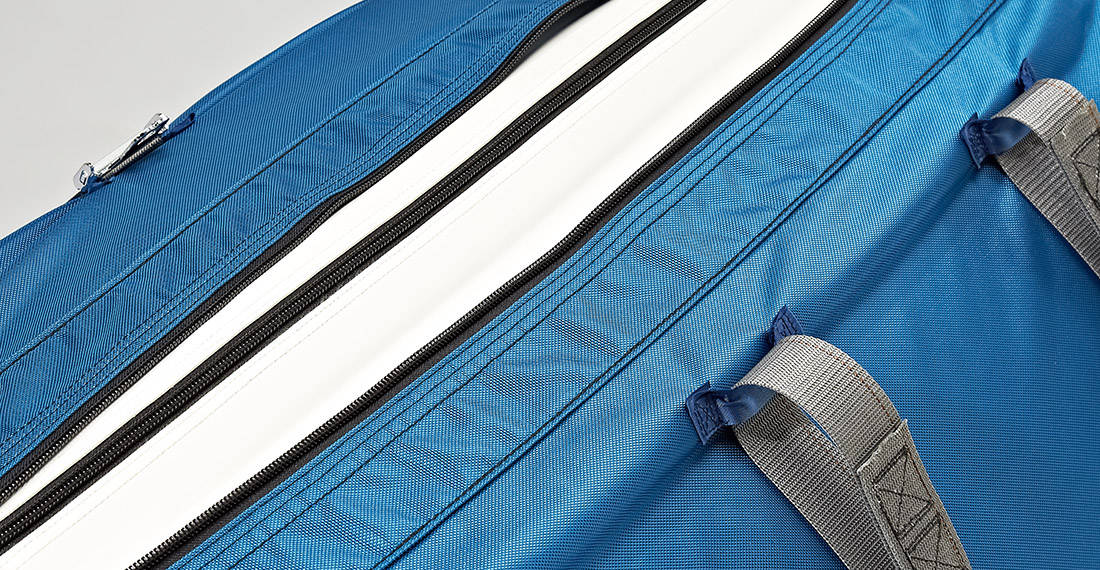

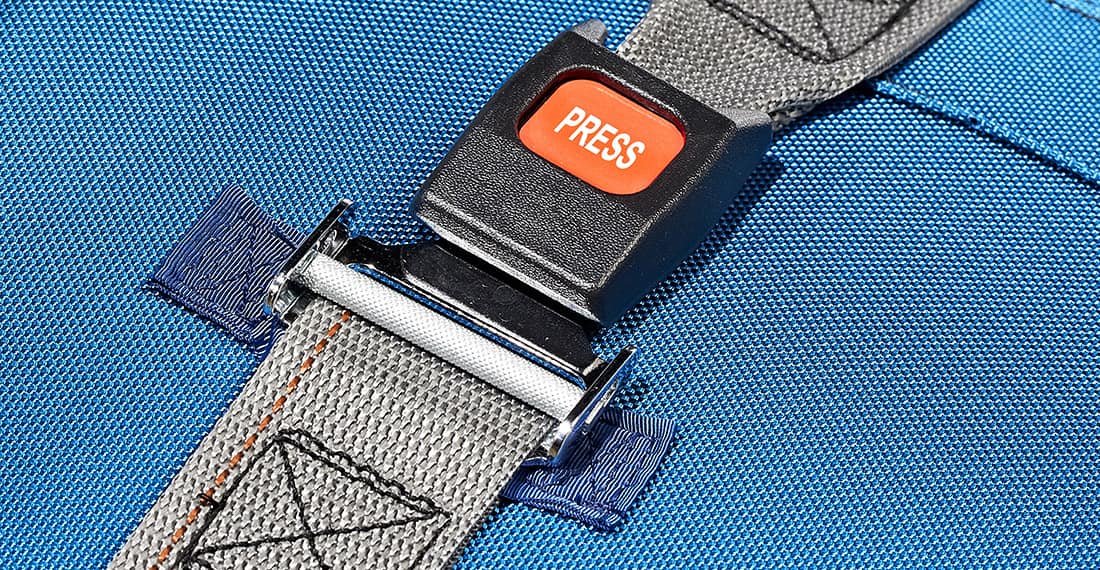

“SafeSet” buckling system for additional secure enclosure support 3-zipper seal assembly

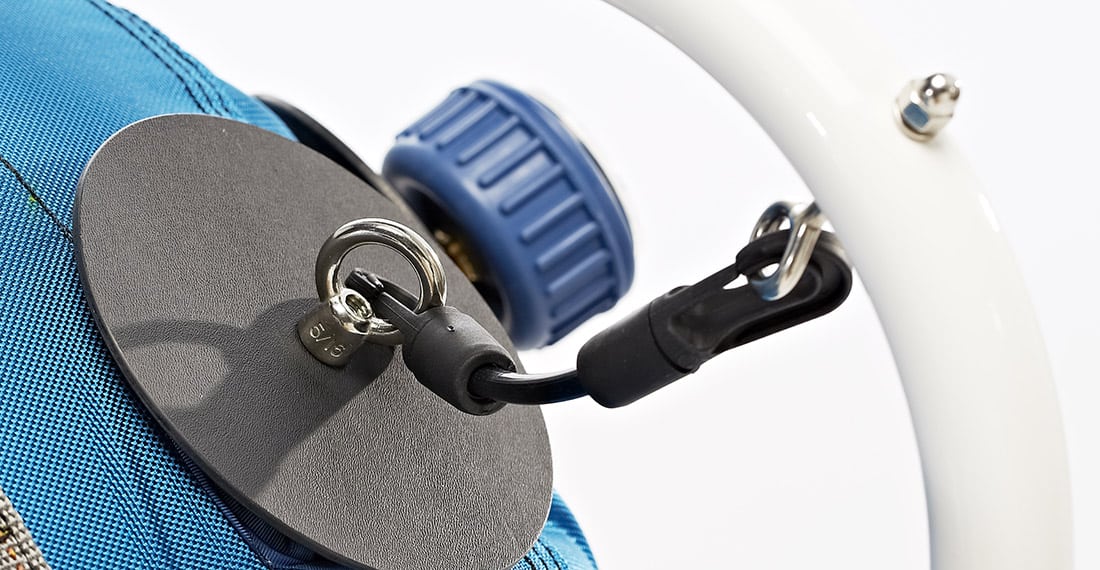

Rigid external steel frame for patient stabilization and added comfort

Tamper-proof redundant pressure regulators

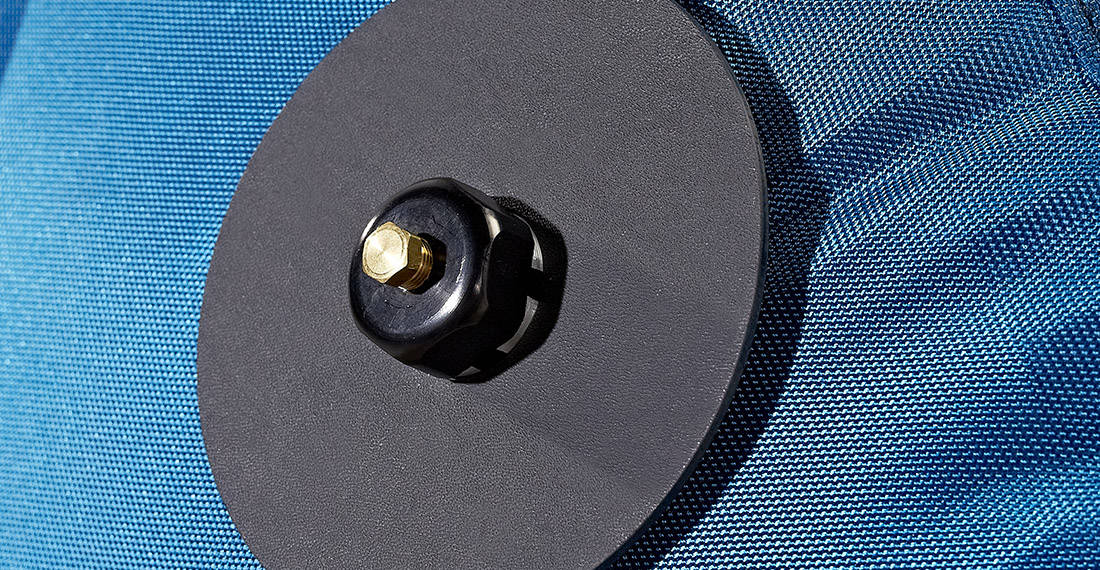

3 additional ports for external medical pass-through devices

Mattress contoured to fit inside the chamber

Manufactured with nontoxic, medical grade components

Weight

  • Bladder: 17.23 kgs (38lbs)
  • Frame: 15.42 kgs (34 lbs)
  • Mattress: 5.89 kgs (13 lbs)
  • Bolsters: 3.17 kgs (7 lbs)
  • Compressor: 16.78 kgs (37 lbs)

Dimensions

Length: 254 cm (100 in)

Diameter (inflated): 81.28 cm (32 in)

  • OxyHealth™ chambers are manufactured in the USA
    in accordance to regulations and codes of the following
  • Quamvis logos
Vitaeris Clean Air Chamber

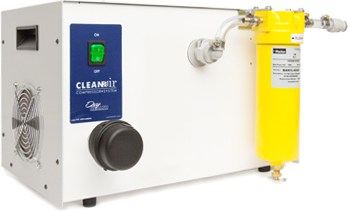

Clean Air Compressor

Double-headed, oil-less, 1/3 hp compressor with dual intake filters with cooling radiator

High-efficiency inline air filtration that filters air to 0.01 microns

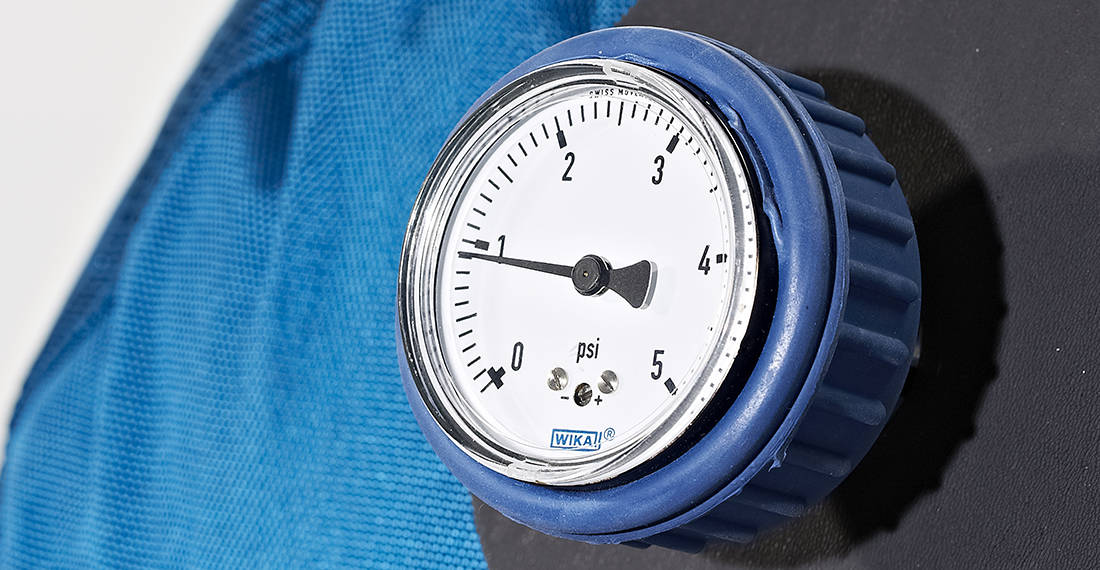

Analog pressure gauge

  • OxyHealth™ chambers are manufactured in the USA
    in accordance to regulations and codes of the following
  • Compressor

What do you get?

Quamvis320® Hyperbaric Chamber

External Frame

Mattress

Bolsters

Clean Air Compressor

3m Medical Grade Hose

Operation Manual

Installation DVD

You get a total of 5 shipping boxes
